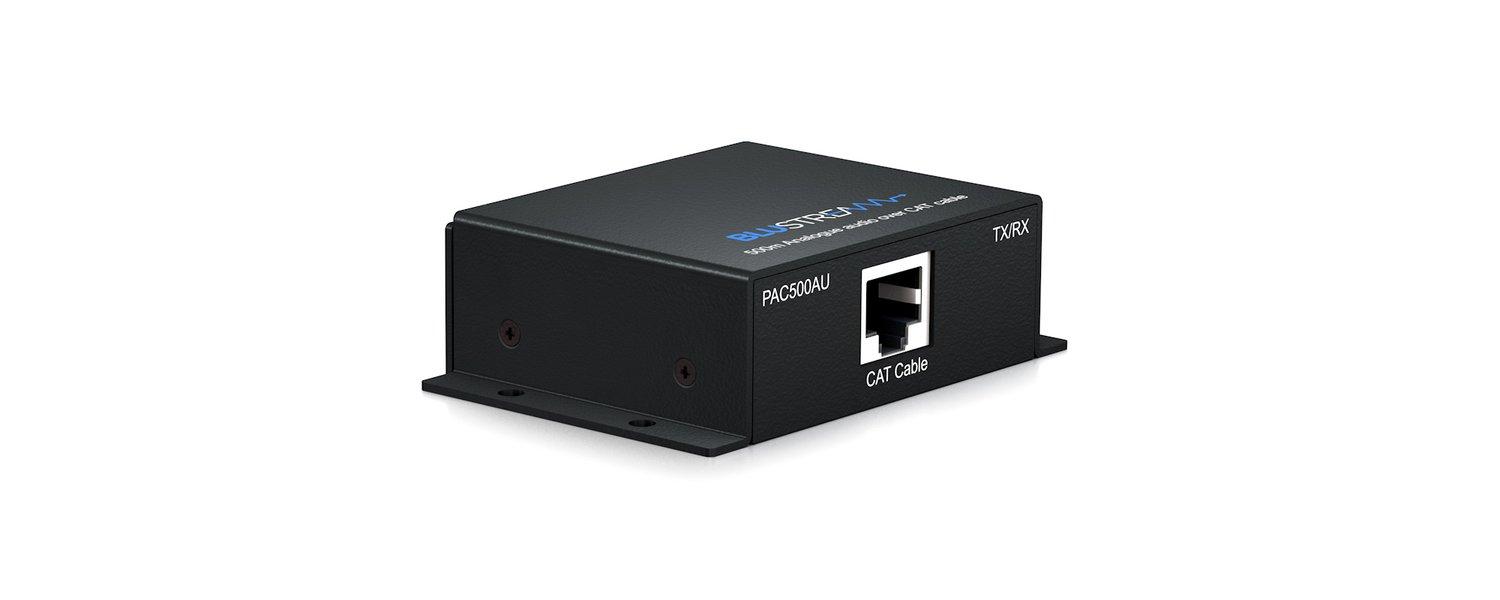

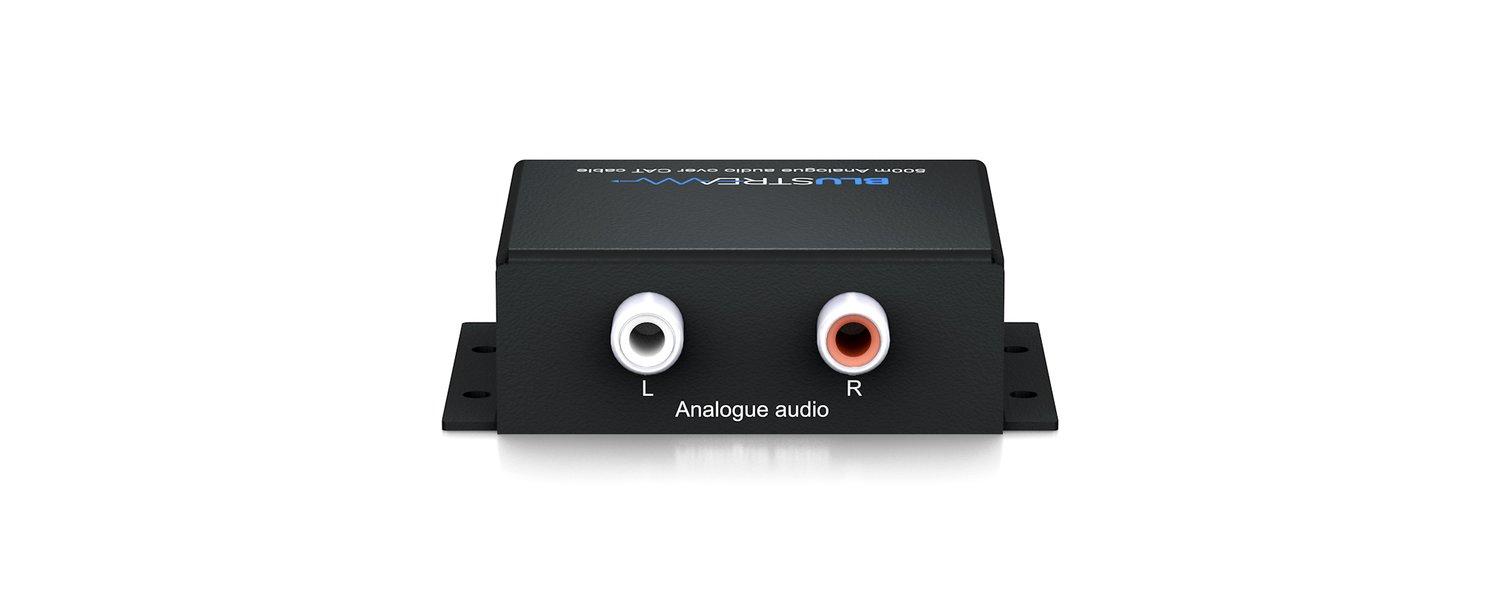

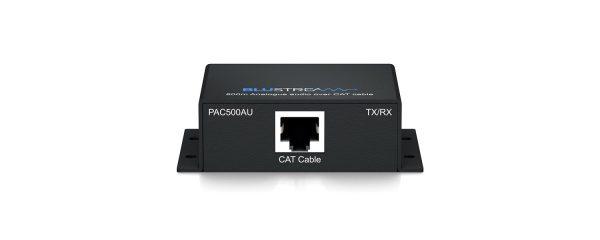

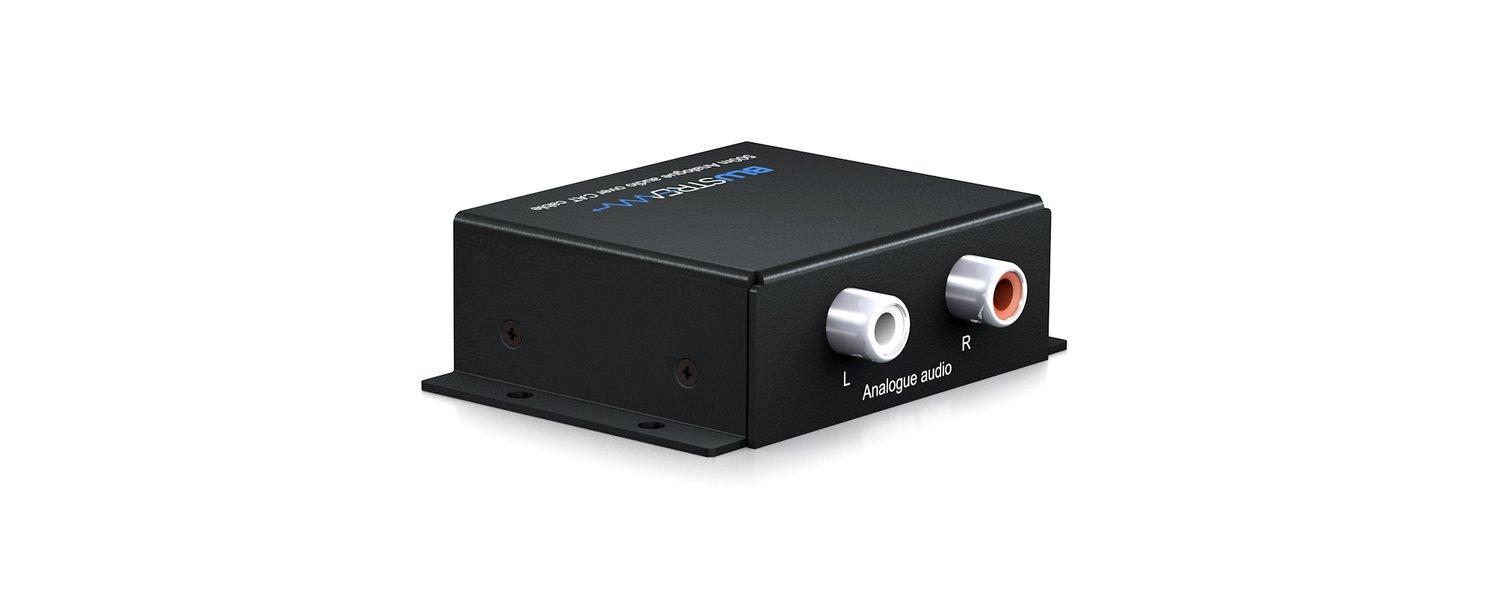

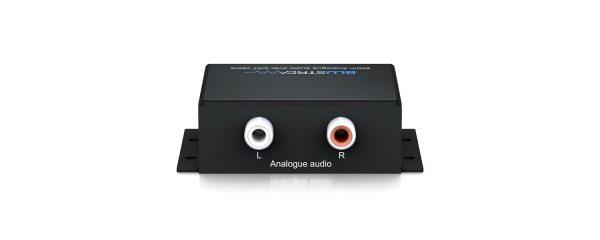

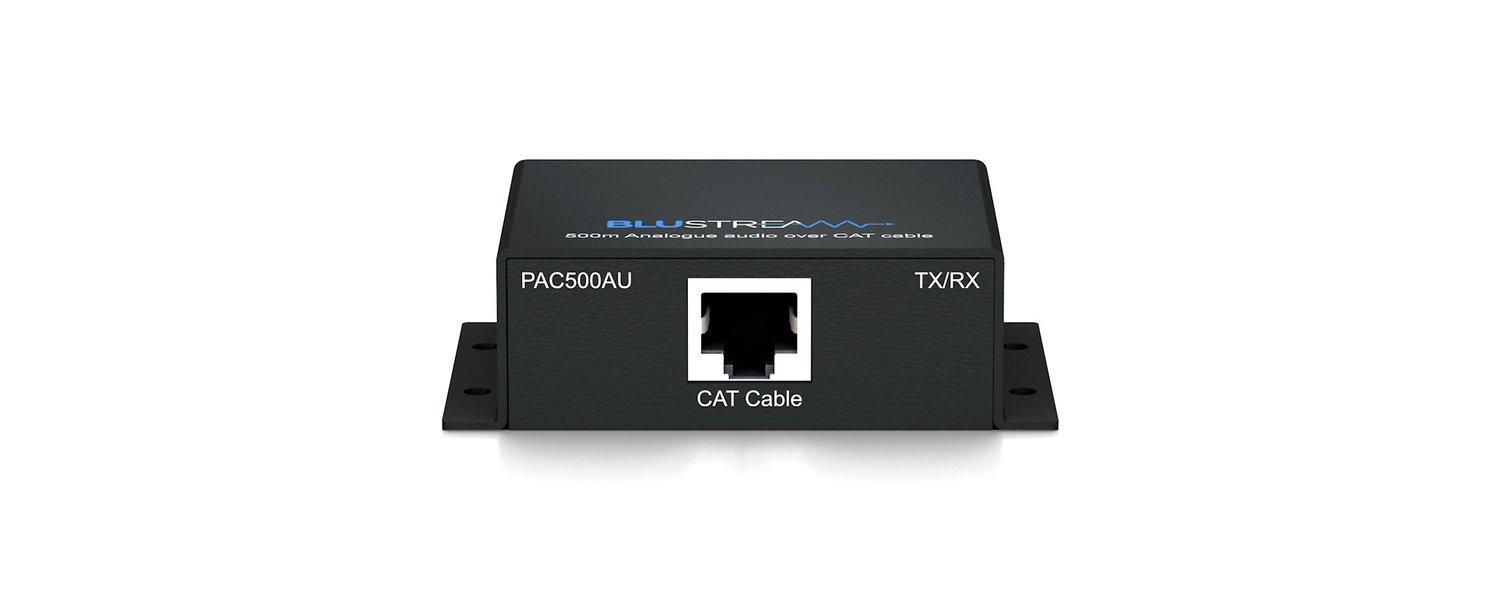

PAC500AU Audio over CAT cable extender transmits analogue audio signals up to distance of 500m.

This plug and play device requires no power supply making it ideal for simple installations in which analogue audio needs to be extended over long distances.

Box Contents

1 x PAC500AU RX
1 x PAC500AU TX
1 x Quick Reference Guide

Key Features

• Extend analogue audio signals up to distances of 500m over a single CAT cable

• Passive solution – Extender kit does not require a power supply

Specifications

• PAC500AU-TX

  – Audio Input Connectors: 2 x RCA analogue left / right

  – Output Connectors: 1 x RJ45

• PAC500AU-RX

  – Input Connectors: 1 x RJ45

  – Output Connectors: 2 x RCA analogue left / right

• Casing Dimensions (W x H x D): 79mm x 55mm x 24mm

• Dimensions Including Connections (W x H x D): 79mm x 63mm x 24mm

• Shipping Weight: 0.4kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  *Note: PAC500AU TX/RX units can used as both a transmitter or receiver
